Two Audiences, One System: An Offline-First Family App With a Facility Cloud Behind It

Context

CareReady helps families prepare belongings for care transitions (short stays, admissions). A facility creates a checklist template and hands the family a short share code / QR; the family redeems it on a phone and keeps it — offline. It runs in production at a public URL, in a closed pilot.

The design tension is the whole problem: the family should never have to create an account or be online, but the facility's data must be authenticated and scoped. One system, two audiences with opposite constraints.

Constraints

• Family side: no login, offline-first. Care happens on the move, on cheap phones, with weak connectivity; a login wall would kill it.
• Facility side: real auth + tenant isolation. Staff data must be authenticated and scoped per facility.
• Health-adjacent + privacy. OCR of paper lists must not capture names or room numbers by design.
• Public repository, solo, part-time. No pool IDs/secrets in the repo; governance via issues, tests, and sanitised runbooks.

Architecture & key decisions

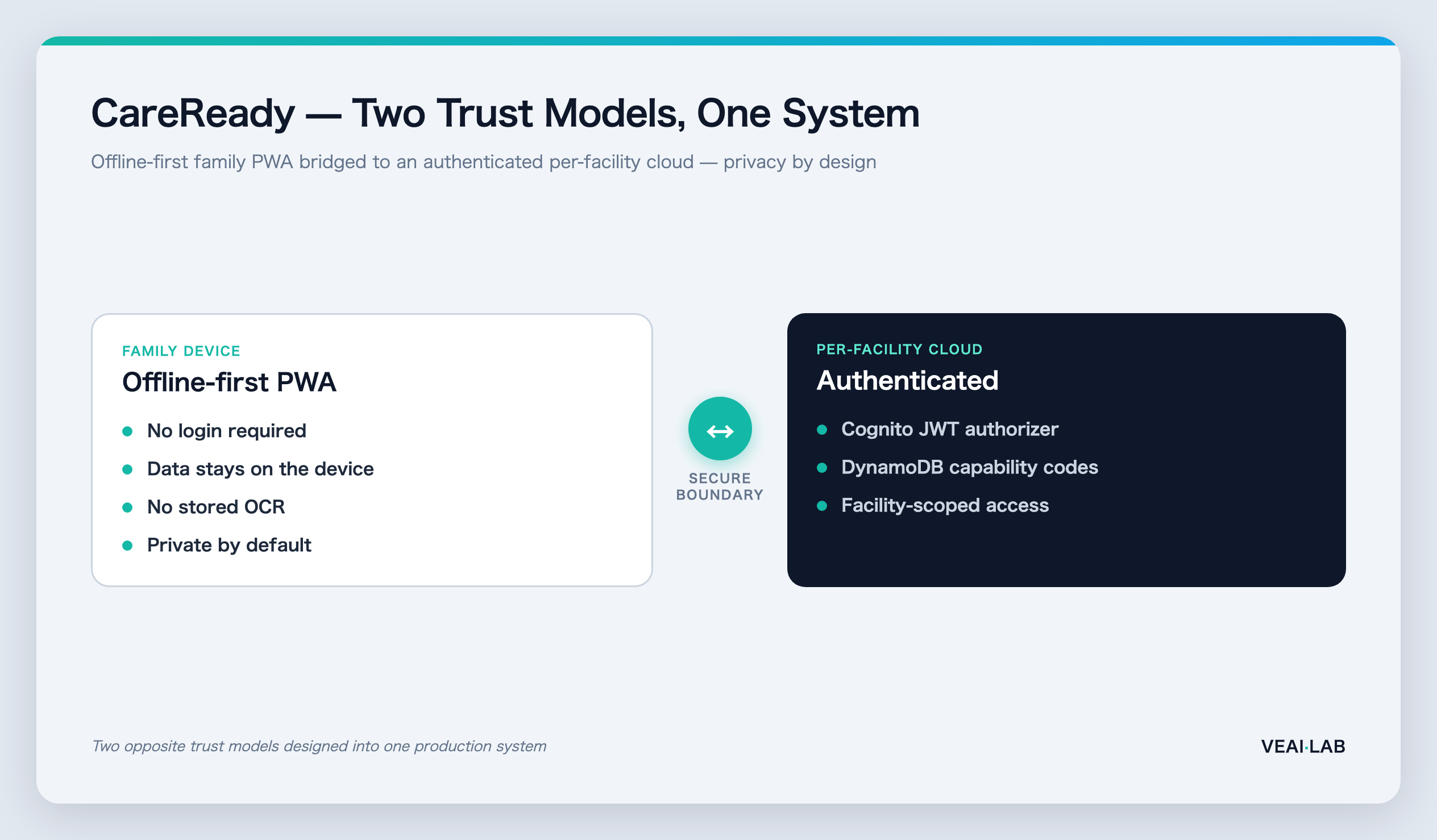

I deliberately gave the two audiences different trust models, bridged by a capability:

• Family (unauthenticated, capability-scoped). Redeeming a template is a public endpoint keyed by a short share code, resolved through a DynamoDB GSI (GSI1PK = CODE#<shareCode>). No account, no PII — the code is the capability. The frontend is an offline-first PWA (service worker + on-device storage), so once redeemed it works with no network and nothing sensitive leaves the device.
• Facility (authenticated, tenant-scoped). Template CRUD sits behind an Amazon Cognito JWT authorizer on an API Gateway HTTP API. Templates are scoped by facilityId, so one facility never sees another's. Self-signup is disabled — an admin provisions facility users — a deliberate choice for a controlled pilot.

Supporting decisions: single-table DynamoDB with a GSI purely to serve the public share-code lookup; one Lambda, boto3-only with an internal router and RemovalPolicy.RETAIN on the table; an OCR provider seam (OpenAI Vision default, Textract switchable) with the key in Secrets Manager and images processed synchronously and not stored; infrastructure as AWS CDK v2, with CI running pytest + moto on every push.

Delivery & governance (the pilot safety gate)

Before inviting real households, I defined an M1 safety gate as GitHub issues and turned it into repeatable, owner-executed artifacts:

• A real-device end-to-end walkthrough (facility sign-in → template + QR → phone redeem → offline retention → prepare/return/print) with a PII/PHI-free defect-recording template and a "no critical defect" sign-off (issue #6).
• A credential-rotation and recovery runbook (issue #7) that explicitly distinguishes the email sign-in alias from Cognito's internal Username — a real operational footgun — procedure only, no secrets.

Outcomes

• One system genuinely serves both audiences: family gets zero-login, offline, no-PII; facility gets authenticated, per-tenant isolation — bridged by a capability code rather than forcing families through auth.
• The pilot has a written, repeatable safety gate, so "is it safe to invite people?" is answered by evidence, not vibes.
• Privacy is a design property: on-device family data, no stored OCR images, secrets in Secrets Manager, per-facility scoping.

Honest limitations

• Still a closed pilot, not general release; the M1 gate is defined and partly executed, and some steps need the owner's real devices/AWS.
• The share-code model trades a little security for a lot of family convenience; right for low-sensitivity belongings data, but not for higher-sensitivity records without rethinking.
• Rate limits and abuse controls on public endpoints are on the backlog before scaling beyond the pilot.

Lessons

• Match the trust model to each audience, not to the system. Forcing families through facility-grade auth would have been "secure" and unused.
• Design DynamoDB from access patterns. The GSI existed only because a public code redeem needed it.
• A pilot needs a written gate. An E2E checklist + rotation runbook made "are we ready for real users?" testable and safe.

Evidence

Repo: github.com/larai-w/careready-belongings-checker — pilot-gate issues #6 (real-device E2E) and #7 (credential rotation/recovery). backend/ (CDK v2, single-Lambda API, DynamoDB + GSI, Cognito, pytest+moto) and the M1 walkthrough / rotation-runbook docs.
